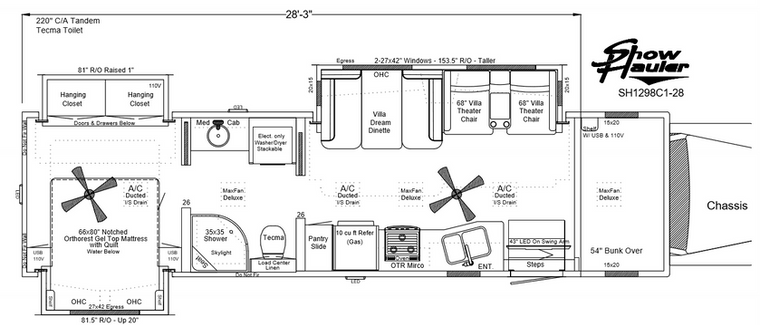

Motorhome Sample Floor Plans

• 7′ Standard slide
• .063 Exterior Aluminium – White Standard
• O/S Storage Compartments Fully Open & Lock w/Lights
• Tubular Steel Floor Frame
• All Steel Cage Construction (Welded)
• 1-7/8″ Laminated Floor
• All Walls, Floors, and Ceilings Insulated
• Electric Brake Control
• 40K Tag Hitch w/7 way Bargman Plug (6K Tongue Weight on Tandem Axle)
• Lighted Grab Handle
• 50 Amp Rear Plug
• (3) 27 x 42 Tinted Windows
• (1) 27 X 42 Egress Tinted Window
• Port Hole Windows in Bunk
• (1) 15 x 20 Kitchen Tinted Window
• Powder Coated Main Frame & Storage Box Frame
• Porch Light
• Electric Double Entry Step
• Sewer Hose
• 50 Gallon LP Tank, Mounting & Hook-up
• Black & Grey Waste Tanks (72-gallon ea.)
• Pressurized Water Fill
• L.E.D Taillights/ Clearance lights
• One-Piece Metal Roof – 100% Walk On
• 100″ Wide Body
• Radius Entrance Door/w Screen, Deadbolt, and shade
• Fiberglass Motorhome Style Rear Cap
• Open Entry Step

• Carpeted Floor Mats
• Sofa Sleeper or Dinette that converts into a Bed
• Linoleum or Carpet w/Pad, Carpet Runners & Cab Mats
• Window Treatment w/Pleated Day/Night Shades
• Decorative Wood Valances
• Decorative Pillows & Quilt
• Cab Pass-thru and Bunk Curtains
• Oak Cabinets w/Raised Panel Oak Doors
• Dovetail Drawers with soft-close guides
• Kitchenette w/Stainless Steel Double Basin Sink and Covers
• Laminate Countertops w/Oak Edges and Backsplash
• Single Lever Faucet W/ Pull out Sprayer
• Wardrobe Closet Lights
• Queen Size – 60×75 Mattress
• Bunk Ladder
• Ceiling Either Fabric or Vinyl Board
• Patterned Vinyl Wallboard
• 7′ Interior Height
• Oak and Mirrored Headboard or Window
• Oak Magazine Rack – Wall Clock
• Cabover Bunk 42″ w/vent

• Deep Cycle (4) 12V Batteries W/ Manual Disconnect
• 8KW Generator – Onan Diesel
• LED Ceiling Lights
• (5) 110V Receptacles w/Exterior GFI Receptacles
• System Monitor, Water & Holding Tanks, LP Battery Levels
• (2) Fantastic Vents
• (7) Courtesy Lights
• 80 Amp Convertor w/50 Amp Service and adapter
• Battery Separator
• Multi-Plex Lighting System With Labeled Switches

Appliances
• LP/CO & Smoke Detectors w/Fire Extinguisher
• 8 Cu. Ft. Refer w/Raised Panel Oak Door
• 1.6 Cu. Ft. Convection Microwave Oven/Fan
• 22″ LED TV in Bedroom
• Blue Ray Player
• 22″ LED TV in Main Area
• 360 degrees TV Antenna w/ booster
• AM/FM/CD w/(4) 7″ Coaxial Speakers
• 12 Gallon Gas/Electric Water Heater
• 30,000 BTU Gas Furnace (ducted)
• (2) 15,000 BTU LO PRO Roof Mount A/C W/Heat Strip,
o Remote Thermostat & Drain Tubes
• 3 Burner Gas Cooktop w/ igniter (where possible)
• Pop-up double 110v outlet w/double USB on the countertop

Bath & Water
• Porcelain Toilet
• 100 Gallon Fresh Water Tank
• 12V On-Demand Pump ( 5.3 GPM )
• Water Heater By-Pass
• Oak Medicine Cabinet w/Mirror
• Lavatory w/Base Cabinet Storage
• 34″x34″ Fiberglass Shower W/ Glass Door & Seat
• Bath Convenience Accessories
• City Water Hookup
• Fresh Water Fill

• 8″ Taller
• Fiberglass front aero cap (Cascadia cab only)
• Cab Cut-Out (FL Only)

SLIDEOUTS
• King Bed Slide
• Queen Bed Slide
• Superslide IPO Standard
• Bedroom Closet Slide
• 10′ slide I/P/O of 7′ •
• 10′ Superslide Couch •
• Kitchen slide 12′

GENERATORS-INVERTERS-LEVELERS
• 12KW Generator Upgrade (Onan)
• 10KW Generator Upgrade (Onan)
• 2800 Watt Inverter Puresine w/ AGS
• 4 – 6V Batteries i/p/o 12V
• Remote Gen Start Bedroom
• Solar Charger 140 Watt
• Auto 4 Leg Hydraulic Level System w/Lg. Pads

AWNINGS
• 16′ Weather Pro Awning 12 Volt with LED lights
• 17′ to 21′ Add $75.00 per foot
• 18′ Carefree Mirage 110V with LED lights
• 19′ to 21′ Carefree Mirage 110V with LED lights
• 32′ Zip Dee roof mount fake can w/end caps
• 32′ Zip Dee roof mount awning w/end caps

EXTERIOR/FEATURES/LIGHTING/TOWING
• Outside Sprayer
• Rear Ladder
• 54″ or 48″ Bunk Over  (42″ STD)
• Remote Backup Camera
• Remote Camera and 2nd Wired for Trailer
• 2 O/S LED Lights
• Exterior TV Jack /w 110 recept.
• Cable TV Hook Up
• Outside Slide Tray (200 lb)
• Rear ShowHauler Mud Flap
• Side Guide Lights
• Keyless Entry
• Rear Fiberglass Spoiler
• Extra Grey Tank (where possible)
• LP Tank Between Frame Rails
• LP Quick Connect
• O/S Radio /w CD Player
• OS Refrigerator /Freezer on Slide
• Rear Pass-Through STORAGE BIN
• OS TV in storage box w/DVD /Stereo
• Heated Holding Tanks (2)
• Heated Holding Tanks (3)
• Black Tank Flush

INSULATION / WINDOWS / VENTS
• Double Insulation
• Thermal Pane Windows
• Frameless windows ea.I/P/O std ones •
• Skylight in Bath
• Fan-tastic Vent w/Thermostat
• Create-A-Breeze Vent
• Roller Day/Night Shades

INTERIOR ELECTRONICS
• CB & Antenna
• Surround Sound System
• Winegard HD Stationary Satellite w/Receiver
• In Motion Satellite/w Receiver
• HD In Motion Sat- w/Receiver DISH network
• Satellite Receiver in Bedroom (HD )
• Satellite Cable Ready

INTERIOR ELECTRONICS
• 28″ LED in place of 23″
• 32″ LED in place of 23″
• 40″ LED in place of 23″
• TV on Slide or swing arm
• Central Vacuum
• 12 V Plug Only
• Pop-up double 110v outlet w/double USB outlet (1 std.)

INTERIOR APPLIANCES
• 10 Cu.Ft. Refrigerator
• 16 Cu. Ft. Refrigerator (need 2800 Inverter)
• 3 Burner Stove /w Oven
• Electric Cooktop – 3 Burners(2 burner $475.00)
• Recessed Cooktop

CABINETS AND COUNTERTOPS
• Solid Surface Counter Tops (Corian)
• Granite Counter Tops (standard colors)
• Maple Cabinets $108.00 per foot
• Upgrade Optional Stains (Kona & Natural are Std)
• Wood Pantry Slide w/3 Shelves
• Cedar Lined Closet (each)
• Plexiglas Doors on Entertainment Center
• Recessed Hinges

MECHANICAL/HEAT/COOL/ELECTRIC/WATER
• 40K furnace i/p/o 30k
• Extra 16 K Furnace
• Macerator Toilet
• Additional 15000 BTU A/C with Drain Tube
• Ducted Air
• Oasis Hydronic Heating System
• Water Filter
• Extra Freshwater Tank
• Larger Shower
• Strip Lighting
• Ceiling Fans (requires 8″ taller unit)
• Colored Shower

FURNITURE
• Supreme Sofa w/Arms, Dinette in Ultra-Leather
• Ultra-Leather Upgrade Dinette
• Ultra-Leather Upgrade Sofa
• Lexus or Supreme Couch Upgrade
• 2nd Sofa
• Drawers Below Dinette
• Our Cab Seats
• Bunk Beds (Quad X 2)
• Flip Over Sofa w/Air Mattress

FLOORING-WALLS-CEILING
• Flooring Upgrade Laminate
• Tile floor upgrade /SQ. FT.
• Cost for diamond pattern tile
• Padded Vinyl Ceiling /w Trim $50 per run. ft
• Padded Vinyl Walls /w Trim $50 per run. ft
• Full-Length Mirror
• Kitchen and back-splash Mirrors
• Kitchen tiled back-splash
